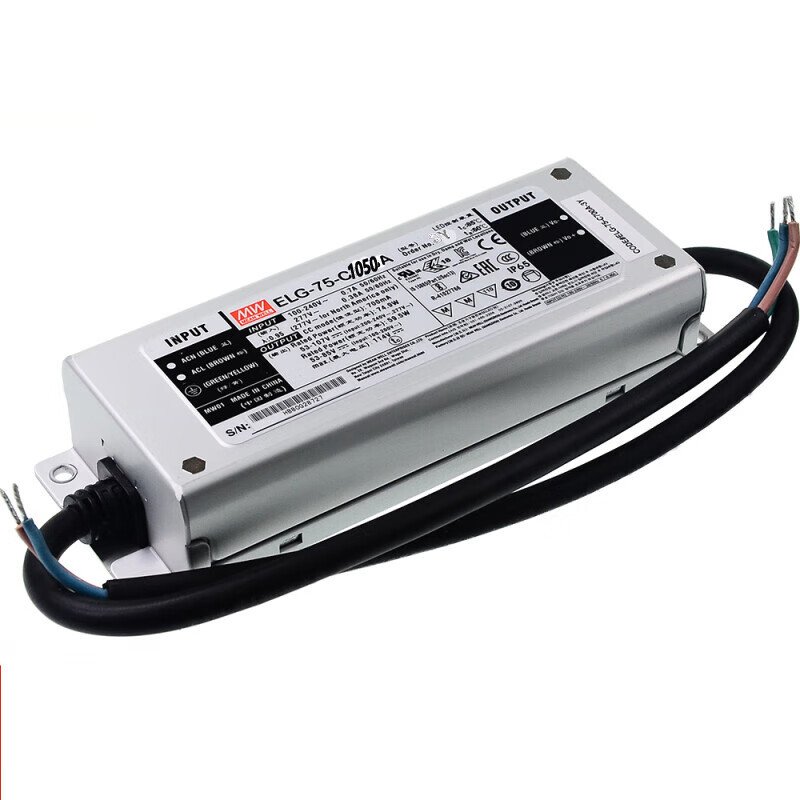

MEAN WELL ELG-75-C1050A — Constant Current IP67 LED Driver
The ELG-75-C1050A is part of MEAN WELL’s ELG-75 series, a 75.6W constant current LED driver with IP67 waterproof rating. Delivering 1050mA output current, this driver is specifically designed for powering high-brightness LED modules and arrays in demanding outdoor environments.
Key Features
- 75.6W output power with 1050mA constant current
- IP67 waterproof rating for harsh outdoor environments
- Universal AC input range: 90-305VAC
- Built-in active PFC function (PF > 0.95)
- High efficiency up to 88%
- 3-in-1 dimming function (1-10V, PWM, resistance)
- Protections: Short circuit, overcurrent, overvoltage, over temperature
- Operating temperature: -40°C to +85°C
- 5-year manufacturer warranty
Technical Specifications
| Parameter | Value |
|---|---|
| Output Power | 75.6W |
| Output Current | 1050mA (constant) |
| Output Voltage Range | 36-72VDC |
| Input Voltage | 90-305VAC |
| Efficiency | 88% typ. |
| Power Factor | 0.95 typ. |
| Operating Temp | -40°C to +85°C |
| Dimensions | 191.4 x 58 x 40mm |
| Weight | 0.65kg |
Applications
Ideal for driving high-power LED modules, LED arrays, COB LEDs, and LED strips in outdoor applications including street lighting, area lighting, and industrial LED fixtures.
Installation Notes
Ensure the LED load voltage falls within the 36-72VDC range. The 3-in-1 dimming function allows flexible brightness control. Mount with adequate ventilation and ensure proper grounding.
Why Choose BrightLink LED
BrightLink LED offers genuine MEAN WELL constant current drivers with expert technical support. We help you select the right driver for your specific LED configuration and application needs.
