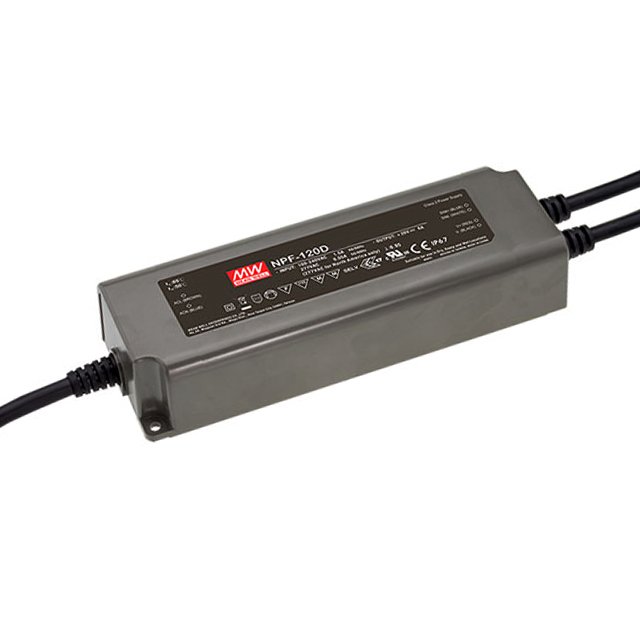

LED Power Supply – 120W 24V IP67 Waterproof Mean Well NPF-120D-24 Compatible

Overview

The Mean Well NPF-120D-24 compatible LED power supply is a high-performance, fully potted 120-watt waterproof driver designed for professional outdoor and wet-location LED lighting installations. Delivering a regulated 24V DC output at up to 5 amps, this IP67-rated power supply provides the power and protection needed for demanding applications ranging from architectural facade lighting to marine environments. The NPF-120D variant includes integrated 3-in-1 dimming functionality, offering precise brightness control without additional hardware.

As part of Mean Well’s flagship NPF series, this driver features a fully encapsulated epoxy-filled housing that provides exceptional thermal conductivity and complete environmental sealing. The 120W capacity makes it suitable for larger outdoor LED installations where multiple LED strips or high-power LED fixtures need to be powered from a single source, reducing installation complexity and cost.

Key Features

• 120W Output Power: Delivers up to 120 watts at 24V DC, capable of powering approximately 15 meters of high-density outdoor LED strip or multiple LED flood lights from a single unit.
• IP67 Waterproof Rating: Fully potted and sealed construction provides complete protection against dust ingress and water immersion up to 1 meter for 30 minutes. Rated for direct burial and submersible applications.
• 3-in-1 Dimming Interface: Built-in support for 1-10V analog dimming, PWM signal dimming, and variable resistance dimming enables seamless integration with lighting control systems and smart home platforms.
• Wide AC Input Range: Accepts 100-305V AC at 47-63Hz, providing compatibility with global power systems and tolerance for voltage sags and surges common in outdoor electrical infrastructure.
• Active PFC: Power factor correction achieves PF > 0.95 at full load, reducing energy waste and meeting regulatory requirements for commercial and municipal installations.
• Comprehensive Protection Suite: Includes short circuit, overcurrent, overvoltage, and over-temperature protection with hiccup mode auto-recovery, ensuring system safety without manual intervention.
• Extended Temperature Range: Operating temperature of -40°C to +85°C covers virtually all climate zones, from arctic conditions to desert environments.
• MTBF 300K Hours: Mean time between failures of 300,000 hours per MIL-HDBK-217F demonstrates the exceptional reliability of this driver design.

Technical Specifications

Applications

The NPF-120D-24 is engineered for professional outdoor LED lighting applications including: large-scale landscape and garden lighting projects; architectural building facade illumination; commercial outdoor LED signage and billboards; pool, spa, and fountain LED lighting; marine vessel and dock LED lighting; outdoor LED strip lighting for patios, pergolas, and covered areas; roadway and pathway LED lighting; and agricultural greenhouse supplemental LED lighting.

Installation Guidelines

Mount the NPF-120D-24 in a location that allows natural convection cooling. Although the IP67 rating permits full submersion, orienting the unit with cable exits pointing downward prevents water accumulation at connection points. All cable connections should use waterproof connectors or be sealed within IP67-rated junction boxes. The integrated 3-in-1 dimming interface connects directly to compatible dimmers without additional interface modules. For installations exceeding 10 meters from the power source, use appropriately sized cables (minimum 16 AWG) to minimize voltage drop. Always derate to 80% of maximum capacity (96W) for continuous operation to maximize service life.

Why Choose This Driver

Our NPF-120D-24 compatible driver matches the performance, durability, and feature set of the original Mean Well design while offering significant cost savings. The fully potted construction ensures decades of reliable operation in the most demanding environments, from coastal salt spray to desert heat. The integrated dimming capability simplifies system design and reduces component count. With a 300,000-hour MTBF rating and comprehensive protection circuits, this driver represents the gold standard for outdoor LED power supplies. Each unit undergoes 100% testing for output accuracy, dimming response, and waterproof integrity before leaving our facility.
