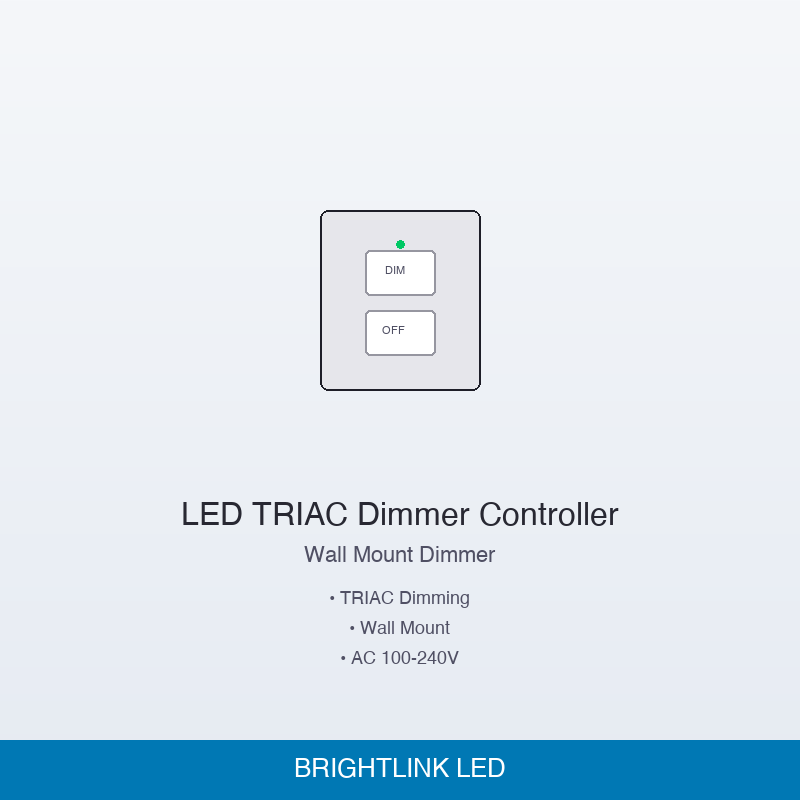

LED TRIAC Dimmer Controller – Wall Mount 0-100 Percent
The TRIAC-based LED dimmer controller provides smooth, flicker-free dimming for single-color LED strip installations using industry-standard leading-edge or trailing-edge phase-cut technology. Designed as an in-wall module or surface-mount unit, this dimmer interfaces with standard wall dimmer switches and rotary potentiometers for intuitive brightness control.
The controller uses a high-quality TRIAC semiconductor paired with advanced zero-crossing detection circuitry to ensure stable dimming from 0-100% without visible flicker, even at the lowest brightness settings. The trailing-edge mode is optimized for electronic LED drivers, while the leading-edge mode provides compatibility with magnetic transformers for legacy systems.
A built-in soft-start function gradually ramps illumination to the target brightness over 0.5 seconds, protecting LED drivers from inrush current stress and extending system lifespan. Over-temperature protection automatically reduces output if the controller exceeds 85°C, and short-circuit protection prevents damage from wiring faults. The minimum brightness threshold is adjustable via an internal potentiometer to match specific LED driver characteristics.
Specifications
| Parameter | Specification |
|---|---|
| Dimming Technology | TRIAC Phase-Cut (Leading/Trailing Edge) |
| Dimming Range | 0-100% |
| Input Voltage | AC 100-240V 50/60Hz |
| Output Voltage | DC 12-24V |
| Max Power | 120W (12V) / 240W (24V) |
| Control Interface | Rotary Potentiometer / 0-10V / Push-Dim |
| Protections | Over-Temp, Short-Circuit, Overload |
| Installation | In-Wall / Surface Mount |
Ideal for residential dimming circuits, hotel room lighting control, restaurant ambiance systems, and retail display illumination where manual dimming is preferred over wireless control. Compatible with standard electrical wall boxes and most LED constant-voltage drivers.
