Overview

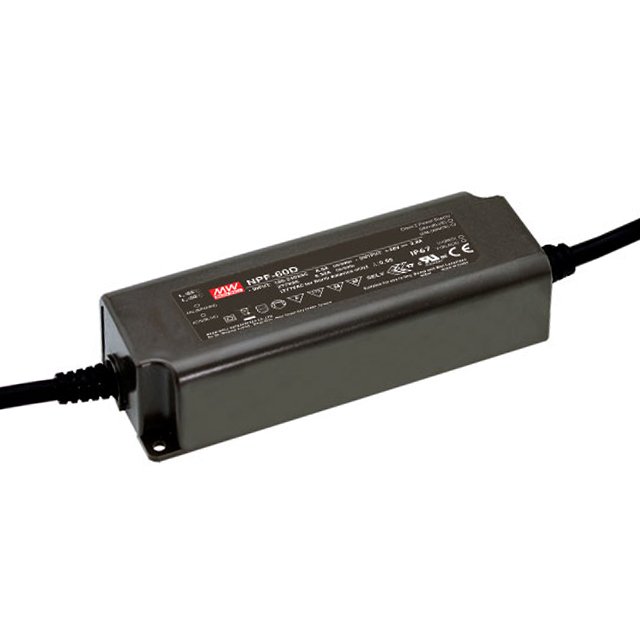

The Mean Well NPF-60D-12 compatible LED power supply is a compact, fully potted 60-watt waterproof driver designed for outdoor and wet-location LED lighting applications requiring 12V DC power. Delivering a regulated 12V output at up to 5 amps, this IP67-rated power supply is fully sealed against dust and water, making it the perfect choice for landscape lighting, marine applications, RV lighting, and any installation where exposure to moisture is a concern. The NPF-60D variant features integrated 3-in-1 dimming functionality for flexible brightness control.
The 12V output voltage is particularly popular for LED strip lighting applications, as 12V LED strips are the most widely available and cost-effective option on the market. The NPF-60D-12 provides ample power for residential-scale outdoor LED installations while maintaining a compact form factor that is easy to conceal and install in tight spaces.
Key Features
- 60W Output Power: Provides up to 60 watts at 12V DC, ideal for powering 5-8 meters of standard 12V LED strip or multiple small LED fixtures in outdoor settings.
- IP67 Waterproof Rating: Fully potted epoxy-filled housing provides complete protection against dust and water immersion up to 1 meter for 30 minutes. Suitable for direct burial, underwater, and high-humidity applications.
- 3-in-1 Dimming: Integrated dimming interface supports 1-10V, PWM, and resistance dimming methods, enabling smooth brightness adjustment without external dimming hardware.
- Universal AC Input: Wide input range of 100-305V AC (47-63Hz) ensures reliable operation across global power grids and tolerance for voltage variations.
- Active PFC: Power factor correction achieves PF > 0.95, improving energy efficiency and meeting regulatory requirements for commercial installations.
- Comprehensive Protection: Built-in short circuit, overcurrent, overvoltage, and over-temperature protection with automatic recovery ensures safe operation in all conditions.
- Compact Size: Small form factor (131.4 x 50.5 x 32.8mm) makes it easy to install in confined spaces such as junction boxes, behind walls, or inside lighting fixtures.
- MTBF 300K Hours: Exceptional reliability rating of 300,000 hours per MIL-HDBK-217F reflects the premium component quality and robust design.
Technical Specifications
| Model | NPF-60D-12 Compatible |
| Output Voltage | 12V DC |
| Output Current | 0-5A |
| Output Power | 60W |
| Input Voltage Range | 100-305V AC |
| Input Frequency | 47-63Hz |
| Power Factor | > 0.95 (at full load) |
| Efficiency (Typical) | 88% |
| Operating Temperature | -40°C to +85°C |
| Case Temperature | Up to 90°C |
| Humidity Range | 5-95% RH (non-condensing) |
| Dimensions | 131.4 x 50.5 x 32.8mm |
| Weight | Approx. 310g |
| IP Rating | IP67 |
| Certifications | UL, CE, CB, TUV, ENEC |
Applications
The NPF-60D-12 is perfectly suited for outdoor and wet-location 12V LED lighting applications including: residential landscape and garden LED lighting; RV and motorhome LED lighting systems; marine and boat LED lighting; pool and spa LED accent lighting; outdoor pathway and step LED lighting; LED strip lighting for covered patios, gazebos, and pergolas; outdoor LED signage and decorative lighting; and greenhouse and agricultural LED grow lighting.
Installation Guidelines
The compact size of the NPF-60D-12 allows installation in tight spaces. Mount the unit in a location with adequate airflow for heat dissipation, even though the potted construction provides excellent thermal management. Orient the unit with cable exits pointing downward to prevent water pooling. All cable connections should be made using waterproof connectors or sealed within IP67-rated junction boxes. The 3-in-1 dimming interface can be connected to a 1-10V wall dimmer, a PWM controller, or a simple potentiometer for manual brightness control. For 12V LED strip installations, keep cable runs under 5 meters to minimize voltage drop, or use thicker gauge wire for longer runs. Derate to 80% capacity (48W) for continuous operation to maximize lifespan.
Why Choose This Driver
Our NPF-60D-12 compatible driver combines the proven reliability of Mean Well’s NPF series design with competitive value, making professional-grade waterproof LED power accessible to a wider audience. The fully potted construction ensures years of trouble-free operation in any weather condition, from freezing winters to scorching summers. The integrated dimming capability eliminates the need for separate dimming modules, simplifying your installation and reducing overall system cost. With a 300,000-hour MTBF rating and comprehensive protection circuits, this driver is engineered to outlast the LED fixtures it powers. Every unit is individually tested for output accuracy, dimming performance, and waterproof integrity before shipping.
