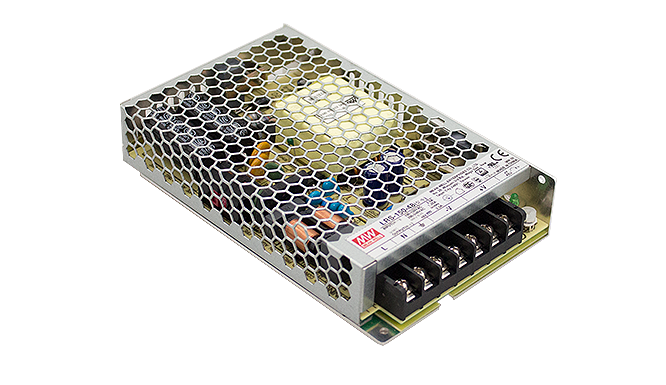

LED Power Supply – 150W 24V Enclosed Mean Well LRS-150-24 Compatible

Overview

When your project demands reliable 150W power in a compact enclosed form factor, the BrightLink LRS-150-24 compatible LED power supply delivers consistent performance where it matters most. Engineered as a direct drop-in replacement for the Mean Well LRS-150-24, this unit provides 24V DC output at 6.5A with active power factor correction — ideal for LED signage, industrial automation, and commercial lighting installations that require a low-profile chassis-mount solution.

Key Features

• 154.8W Continuous Output — 24V DC at 6.5A with ±2% voltage accuracy for stable LED driver performance across varying load conditions
• Universal AC Input Range — Accepts 85-264VAC (47-63Hz) with active PFC, ensuring clean power draw from any mains supply worldwide
• Ultra-Compact Low Profile — Only 30mm height (159 × 97 × 30mm), fits into tight electrical enclosures and slim mounting spaces where standard PSUs won’t fit
• Comprehensive Protection Suite — Built-in over-voltage protection (OVP), over-current protection (OCP), short-circuit protection (SCP), and over-temperature protection (OTP) with automatic recovery
• High Efficiency Design — Up to 89% energy efficiency at 230VAC input, reducing heat generation and lowering electricity costs over the product lifetime
• Industrial-Grade Reliability — Operating temperature range from -30°C to +70°C with forced air cooling, 3kV AC isolation between input and output

Technical Specifications

Applications

• LED Channel Letters & Signage — Powers 24V LED modules for storefront signs, illuminated logos, and architectural accent lighting with stable voltage regulation
• Industrial Control Panels — Supplies 24V DC to PLCs, relays, sensors, and HMI panels in factory automation environments
• Commercial Lighting Systems — Drives 24V LED strip lights and linear fixtures in retail stores, offices, and hospitality venues
• Security & Access Control — Provides reliable power for CCTV cameras, card readers, and electronic door locks
• Telecommunications Equipment — Backup power supply for networking racks and communication devices

Installation Notes

Mount the power supply on a flat metal surface or DIN adapter rail using the integrated screw holes. Ensure at least 10mm clearance on all sides for adequate airflow. Connect AC input to the L and N terminals, and DC output to the V+ and V- terminals. For LED strip applications, keep wire runs under 5 meters per segment to prevent voltage drop.

Why Choose BrightLink

As a direct manufacturer, BrightLink offers this LRS-150-24 compatible power supply at direct-from-manufacturer value — typically 30-40% below the OEM brand while maintaining equivalent performance standards. Every unit undergoes full burn-in testing before shipping. We carry UL, CE, CB, and TUV certifications, and back every product with a 3-year warranty. Bulk value available for OEM and project orders — contact us for volume quotes.
