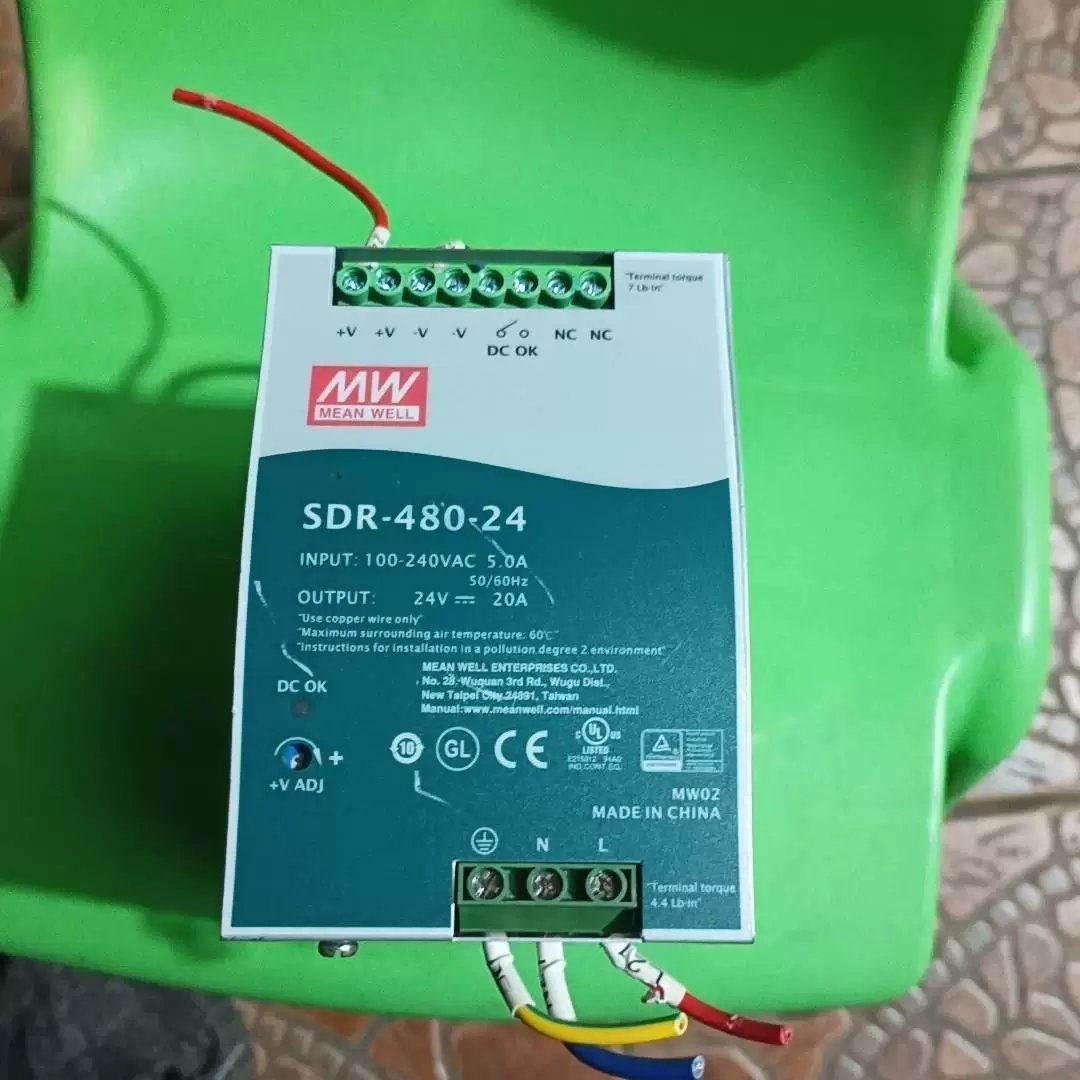

Mean Well SDR-480-24 Compatible 480W 24V DIN Rail Mount Industrial Power Supply

Overview

The BrightLink SDR-480-24 compatible DIN rail power supply delivers a robust 480W of regulated 24V DC power in a rugged metal enclosure designed for industrial environments. As a direct replacement for the Mean Well SDR-480-24, this high-capacity driver mounts on standard TS-35 DIN rails and provides clean, reliable power for demanding applications including industrial automation, server and network equipment, and large-scale LED lighting installations.

Featuring active power factor correction (PFC greater than 0.95), universal AC input from 90 to 264VAC, and efficiency up to 94%, this power supply minimizes energy waste while maximizing output capacity. The metal housing provides excellent heat dissipation and electromagnetic shielding, ensuring stable operation even in electrically noisy industrial environments.

Key Features

• 480W High-Capacity Output – 24V DC at up to 20A, one of the highest power densities available in a DIN rail form factor
• Standard DIN Rail Mount – Compatible with TS-35/7.5 and TS-35/15 rails for quick panel installation
• Active PFC – Power factor correction greater than 0.95 meets international energy standards and reduces harmonic distortion
• Universal AC Input – 90-264VAC range covers all global mains voltages including 100V, 110V, 115V, 120V, 200V, 220V, 230V, and 240V
• High Efficiency – Up to 94% efficiency at full load reduces operating costs and heat generation
• Metal Housing – Rugged steel enclosure provides superior heat dissipation and EMI shielding
• DC OK Signal – Relay contact output for power status monitoring and system integration
• Comprehensive Protection – Short circuit, overcurrent, overvoltage, overtemperature, and overload protection with auto-recovery
• Low Ripple – Less than 200mV ripple and noise for clean power delivery to sensitive equipment
• 3-Year Warranty – Industrial-grade construction backed by full manufacturer warranty

Technical Specifications

Applications

The 480W output capacity of the SDR-480-24 compatible power supply makes it suitable for high-demand industrial and commercial applications. Typical use cases include industrial automation and PLC systems with multiple I/O modules, server room and data center auxiliary power, large-scale LED display and video wall power distribution, CNC machine control systems, conveyor and material handling system power, building management system (BMS) controllers, large LED strip installations in warehouses and commercial spaces, and telecommunications base station equipment.

Installation Notes

Mount the SDR-480-24 compatible unit on a standard TS-35 DIN rail using the integrated mounting clips. Due to the 480W output, ensure the input circuit is protected by an appropriately rated circuit breaker (minimum 10A for 240VAC input, 20A for 120VAC input). Use minimum 14 AWG wire for the AC input and minimum 12 AWG for the DC output to handle the 20A load safely. The DC OK relay contact can be connected to a PLC input or status indicator for remote monitoring. Maintain at least 20mm clearance on each side and 50mm above and below for proper ventilation. The metal housing acts as a heat sink – avoid covering or enclosing the unit in a way that restricts airflow. For parallel operation to increase capacity, consult the technical datasheet for proper load-sharing configuration.

Why Choose BrightLink

BrightLink industrial power supplies are built to perform in the most demanding environments. Every SDR-480-24 compatible unit undergoes rigorous quality assurance including 100% full-load burn-in testing, hi-pot insulation verification, output accuracy testing, and thermal cycling. We provide competitive pricing without compromising on quality, backed by a 3-year warranty and responsive technical support. Trusted by system integrators, facility managers, and industrial engineers who demand reliable power for mission-critical applications.
