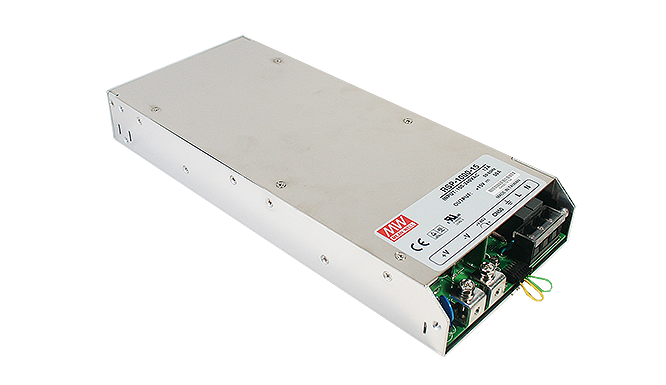

LED Power Supply – 500W 24V High Power Mean Well RSP-500-24 Compatible

Overview

For high-density LED installations and industrial systems that demand serious wattage, the BrightLink RSP-500-24 compatible power supply packs 500W of 24V DC output into a surprisingly compact metal chassis. With built-in active PFC and a built-in cooling fan, this unit handles the thermal challenges of continuous full-load operation — making it the backbone power supply for large-scale LED wall washers, commercial grow lights, and factory automation systems.

Key Features

• 500W Massive Output Capacity — Delivers 24V DC at 20.8A from a single unit, eliminating the need to parallel multiple smaller power supplies for high-current LED arrays
• Active Power Factor Correction — Built-in PFC circuit achieves PF ≥0.98, reducing reactive power draw and avoiding utility penalties in commercial installations
• Intelligent Thermal Management — Internal DC fan with temperature-controlled speed adjusts airflow based on load and ambient conditions, extending component life
• Multiple Output Voltage Options — Also available in 12V, 15V, 27V, 36V, and 48V variants — check our store for the full RSP-500 compatible range
• Full Protection Array — Over-voltage, over-current, over-temperature, and short-circuit protection with latch-off and auto-recovery modes for system safety
• Remote On/Off Control — Built-in remote control terminal allows external enable/disable switching via PLC or timer, supporting energy-saving automation strategies

Technical Specifications

Applications

• Large-Scale LED Display Walls — Powers high-brightness LED video walls and billboard displays requiring 24V DC at currents exceeding 20A for continuous operation
• Commercial Horticulture Lighting — Drives arrays of high-power LED grow lights in greenhouses and indoor farms where consistent 24V power is critical for plant growth cycles
• Industrial Machine Vision Systems — Provides clean, regulated 24V DC for LED inspection lighting, camera arrays, and sensor networks on production lines
• Stage & Entertainment Lighting — Powers DMX-controlled LED wash fixtures, pixel arrays, and architectural effects in theaters, concert venues, and themed entertainment
• Telecom & Data Center Backup — Serves as a primary or redundant power module in 24V DC power distribution systems for network equipment

Installation Notes

Mount horizontally or vertically on a flat metal surface using the 4 corner mounting holes. Ensure at least 20mm clearance around the unit for airflow, especially near the cooling fan intake. Connect AC input via the terminal block (L, N, PE). The remote ON/OFF function can be activated by connecting the control terminals to a dry-contact switch or PLC output. For LED strip installations, use appropriately rated wire gauge (AWG 12 or larger for runs over 3 meters).

Why Choose BrightLink

BrightLink’s RSP-500-24 compatible power supply delivers the same 500W output, active PFC, and protection features as the original Mean Well unit — at significant cost savings for volume buyers. Our direct factory relationship means no distributor markups, faster lead times, and flexible MOQ for project-based orders. All units carry UL, CE, CB, and TUV certifications and include our industry-leading 3-year warranty. Contact us for project value on 10+ units.
