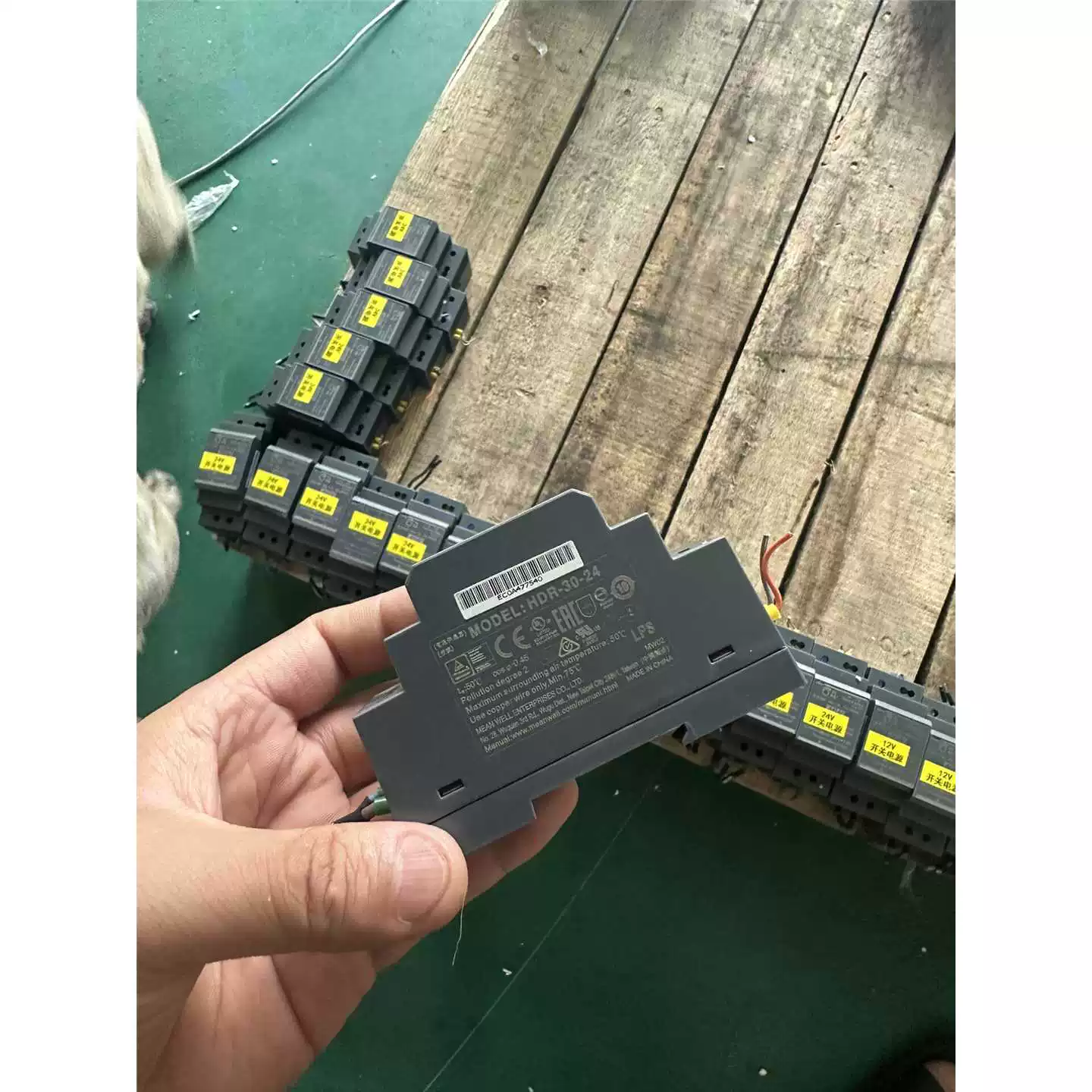

LED Power Supply – 30W 24V DIN Rail Mean Well HDR-30 Compatible

The Sweet Spot Between Compact Size and Meaningful Power Output

For applications that outgrow 15W DIN rail supplies but don’t justify the footprint of 60W+ units, the BrightLink BL-HDR30 hits the optimal balance. At 22.5mm wide and 30W output, this driver powers moderate LED loads — from cabinet lighting strips to small area fixtures — while maintaining the tool-free DIN rail mounting that electricians prefer.

Key Features

• 30W in 22.5mm Width — Doubles the power density of 15W models while adding only 4.6mm to the rail footprint; ideal when panel space is at a premium but 15W isn’t enough
• Five Output Voltage Options — Choose 5V (4A), 12V (2.5A), 15V (2A), 24V (1.3A), or 48V (0.65A) to match virtually any low-power LED or control circuit requirement
• Adjustable Output Voltage ±15% — Fine-tune output to compensate for voltage drop in long cable runs or to match specific LED forward voltage requirements
• Protections That Protect Your Investment — Hiccup mode short circuit protection auto-recovers when faults clear; overvoltage clamp prevents damage to downstream LED drivers and controllers
• LED Status Indicator — Green DC OK LED visible through standard enclosure door cutouts provides at-a-glance system health monitoring during maintenance rounds
• Low Standby Power <0.5W — Meets ErP Lot 6 standby power requirements for energy-conscious installations with strict efficiency mandates

Technical Specifications

Typical Applications

• LED Strip Lighting in Retail Displays — Powers 1-2 meters of high-density LED strip in showcase windows and display cases with stable, flicker-free output
• Under-Cabinet Kitchen Lighting — Compact DIN rail mount fits inside kitchen electrical panels to power LED under-cabinet strips
• Security Camera & Access Control Power — Provides clean 12V or 24V DC for IP cameras, card readers, and electric door strikes
• Telecommunications Equipment — 48V model powers PoE switches and telecom interface cards in 19-inch rack enclosures
• Medical Device Auxiliary Power — Low leakage current and certified safety make it suitable for non-patient-contact medical equipment per IEC 62368-1

Installation Notes

Mounts to standard 35mm DIN rail with integrated spring clip — push down to snap on, pull tab to release. Use the adjustable trim pot to compensate for voltage drop if cable runs exceed 5 meters. For redundant power configurations, connect multiple units in parallel with external ORing diodes. Allow 25mm vertical clearance above and below for natural convection cooling.

Why Choose BrightLink?

BrightLink’s HDR-30 compatible driver offers the same reliability as market-leading alternatives at a more accessible value point, thanks to our direct manufacturing model. We maintain consistent component sourcing and production quality across production runs, so your panel designs remain stable over multi-year deployments. Backed by our 3-year warranty with direct-from-manufacturer RMA service and technical support from engineers who understand DIN rail power supply applications.
