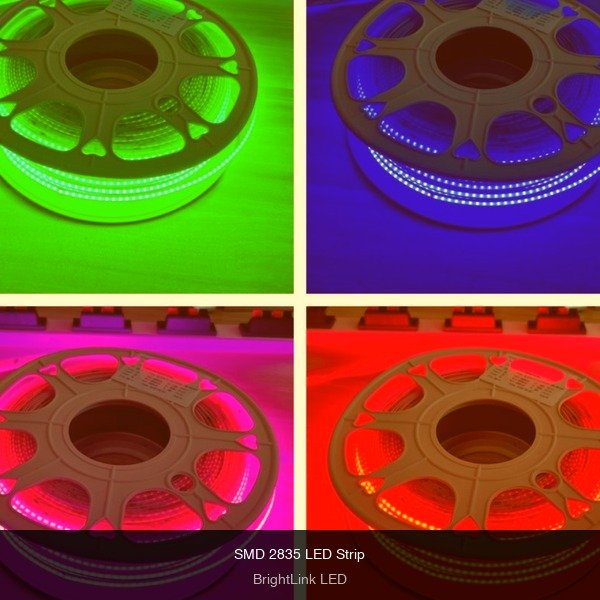

SMD 2835 LED Strip Light – High Efficiency & Brightness
The SMD 2835 LED strip light features advanced 2835 chip technology delivering up to 120 lumens per watt — significantly brighter and more efficient than older 3528 and 5050 strips. Each LED measures just 2.8×3.5mm, enabling ultra-high density configurations up to 120 LEDs per meter with uniform, dot-free illumination. Available in warm white (3000K), natural white (4000K), and cool white (6000K), this strip is the ideal choice for both residential and commercial lighting projects where energy savings and long service life matter.
Key Features & Benefits
- High-Efficiency SMD 2835 Chips — Up to 120 lm/W, reducing energy consumption by up to 60% compared to incandescent alternatives.
- High CRI Option (Ra>90) — Accurately renders colors, perfect for retail displays, kitchens, and art studios.
- Density Options — 60 LED/m for general lighting, 120 LED/m for continuous dot-free linear light.
- Flexible PCB — Bend radius as small as 30mm, suitable for curves, coves, and architectural contours.
- Cuttable Design — Cut marks every 3 LEDs (60 LED/m) or 6 LEDs (120 LED/m) for custom lengths.
- 3M Adhesive Backing — Peel-and-stick installation on clean, dry surfaces.
- IP20 / IP65 / IP67 / IP68 — Options for indoor, splash-proof, outdoor, and even underwater applications.
- 50,000-Hour Lifespan — Maintenance-free operation with less than 5% lumen depreciation over rated life.
Technical Specifications
| LED Chip | SMD 2835 (2.8×3.5mm) |
| Input Voltage | DC 12V / DC 24V |
| LED Density | 60 LED/m or 120 LED/m |
| Wattage | 9.6 W/m (60 LED/m) / 14.4 W/m (120 LED/m) |
| Luminous Flux | Up to 1,200 lm/m (120 LED/m) |
| CRI | Ra>80 / Ra>90 option |
| Color Temperatures | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K |
| Beam Angle | 120° |
| PCB Width | 8mm / 10mm / 12mm |
| IP Rating | IP20 / IP65 / IP67 / IP68 |
| Strip Length | 5m per reel (custom available) |
| Lifespan | 50,000 hours |
| Warranty | 3 Years |
Common Applications
- Kitchen cabinet under-lighting and cove lighting
- Retail shelf and display case illumination
- Office and commercial linear lighting
- Staircase, hallway, and architectural accent lighting
- Aluminum profile channel installations for seamless linear light
Installation Guide
- Calculate total wattage: strip wattage × total length, then select a power supply with at least 20% headroom.
- Clean the mounting surface thoroughly before applying the 3M adhesive tape.
- For runs longer than 5m, use parallel wiring or signal amplifiers to maintain consistent brightness.
- Mount inside aluminum profiles for improved heat dissipation and a professional finish.
- Always use a compatible LED dimmer for dimming applications (PWM or 0-10V).
Why Choose SMD 2835 Over Other Chips?
Compared to SMD 3528, the 2835 chip delivers 3× the brightness per LED with lower thermal resistance thanks to its larger phosphor pad and improved heat sink design. Compared to SMD 5050, the 2835 consumes 40% less power while delivering comparable light output, and its smaller footprint allows higher density placement. For projects demanding high efficiency, uniform light distribution, and long-term reliability, the SMD 2835 LED strip is the optimal choice.
Pair this strip with our LED power supplies and aluminum profiles for a complete, warranty-backed lighting solution.
