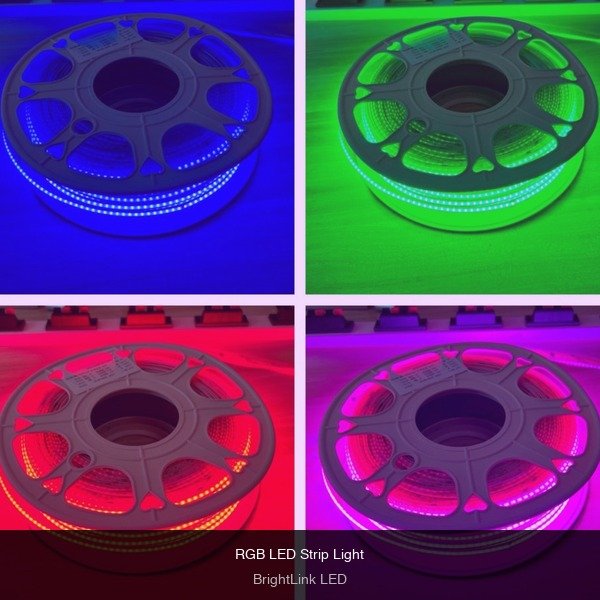

BrightLink RGB & RGBW LED Strip Light — Full Color Illumination
Transform any space into a dynamic, color-shifting environment with BrightLink’s RGB and RGBW LED strip lights. Using premium 5050 SMD LEDs with independent red, green, blue (and white) channels, these strips produce millions of color combinations from a single flexible circuit board — eliminating the need for multiple single-color strips.
Our RGBW variant adds a dedicated white LED chip alongside the RGB trio, delivering true warm or cool white illumination without the color-compromise of mixing RGB to approximate white. This makes the RGBW strip ideal for spaces that need both vivid color effects and genuine white light for tasks and general illumination.
Key Features & Benefits
- 5050 SMD LED Technology — Each LED package contains 3 (RGB) or 4 (RGBW) independent chips, producing vibrant color mixing with smooth gradients and uniform light distribution across the entire strip length.
- 16.7 Million Color Options — When paired with a compatible RGB controller, the strip can display any color in the spectrum, from deep saturated hues to soft pastels, enabling endless creative lighting designs.
- True White from RGBW — The dedicated white chip in our RGBW strips produces genuine 3000K warm white or 6000K cool white output at full brightness — something RGB-only strips cannot achieve accurately.
- Flexible PCB with 3M Adhesive — Bend the strip around curves, corners, and irregular surfaces. The genuine 3M VHB adhesive backing ensures secure bonding to aluminum profiles, walls, furniture, and ceilings.
- Cuttable Every 3 LEDs (RGB) / 4 LEDs (RGBW) — Snip the strip at marked cut points to achieve exact lengths for your project. Each cut mark is clearly silkscreened on the PCB for precision.
- IP20 to IP68 Protection Options — Choose from non-waterproof (IP20) for indoor use, splash-proof IP65 for bathrooms and kitchens, or fully submersible IP68 for pools, fountains, and outdoor landscape features.
Technical Specifications
| Model | BL-RGB5050-60 / BL-RGBW5050-60 |
| LED Type | SMD 5050 (RGB 3-chip / RGBW 4-chip) |
| LED Density | 60 LEDs/meter |
| Input Voltage | 12VDC / 24VDC |
| Power (RGB, per meter) | 14.4W/m (at 12V, 60LED/m) |
| Power (RGBW, per meter) | 19.2W/m (at 24V, 60LED/m) |
| Beam Angle | 120 degrees |
| CRI | Ra > 80 (white channels) |
| PCB Width | 10mm (RGB) / 12mm (RGBW) |
| Strip Length | 5m per reel (custom lengths available) |
| Cut Interval | Every 3 LEDs (50mm at 60LED/m) / Every 4 LEDs (RGBW) |
| IP Ratings | IP20 / IP65 (silicone coated) / IP67 (silicone tube) / IP68 (extruded sleeve) |
| Operating Temperature | -20 deg C ~ +60 deg C |
| Lifespan | >50,000 hours |
| Warranty | 3 Years |
Typical Applications
- Entertainment & Media Rooms — Create immersive ambient lighting that syncs with music, movies, or gaming for a cinematic experience behind TVs, projectors, and surround sound systems.
- Hospitality & Restaurant Lighting — Set different moods throughout the day: energizing cool white during lunch service, warm white for dinner, and vibrant colors for late-night bar atmosphere.
- Retail & Commercial Displays — Eye-catching color-changing accent lighting in storefront windows, product showcases, and point-of-sale areas that attract customer attention.
- Architectural Feature Lighting — Highlight building facades, bridges, and interior design features with programmable color sequences for holidays, events, or brand colors.
- Residential Smart Home Integration — Compatible with WiFi/Bluetooth controllers for voice-activated color control via Alexa, Google Home, and smart home automation systems.
Installation Notes
Connect the strip to a compatible RGB or RGBW LED controller, then wire the controller output to the strip’s input leads (matching color-coded wires: R/G/B/W/+). For runs longer than 5m, use power injection at intervals to prevent voltage drop and brightness inconsistency. Always mount the strip on an aluminum profile for optimal heat dissipation, which extends LED lifespan and maintains color consistency. Do not exceed the maximum run length specified for your voltage (12V: 5m, 24V: 10m per power feed).
Why Choose BrightLink?
BrightLink manufactures RGB and RGBW LED strips using premium copper PCB substrates and bin-sorted LEDs from top-tier manufacturers, ensuring consistent color temperature and brightness across every reel. Our strips undergo 100% electrical testing and visual inspection before shipping. We offer OEM and private-label services with custom packaging, printed logos, and tailored strip lengths. volume options available for lighting contractors, AV integrators, and hospitality fit-out companies. Request free samples to evaluate color quality and adhesive performance.
