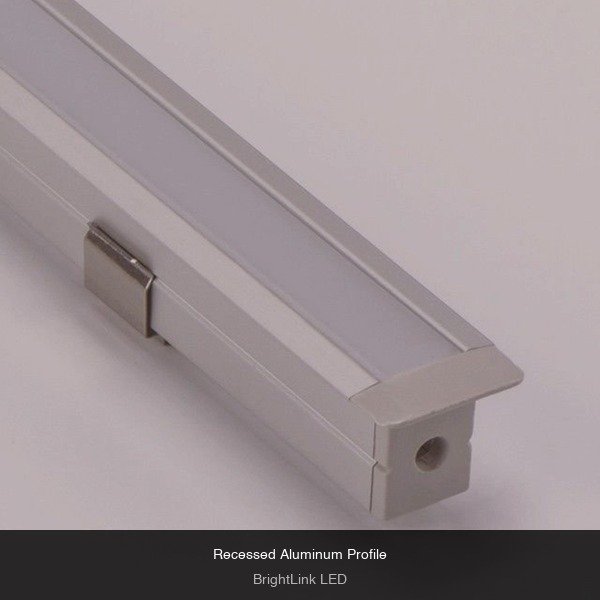

Recessed (Inground) Aluminum Profile

Overview

Recessed lighting transforms any space from ordinary to architecturally refined. BrightLink’s recessed aluminum LED profile is designed to sit flush with the surrounding surface — whether that’s drywall, plaster, wood, or tile — creating a seamless built-in lighting effect where only the light appears to emerge from the surface itself. The deep-channel design conceals the LED strip completely behind the frosted diffuser, eliminating any visible LED dots and producing a smooth, continuous line of light that architects and interior designers demand.

Key Features

• Flush-Mount Design — The profile’s mounting flange sits level with the surrounding surface, creating a clean architectural line with no visible profile edges — the light appears to emerge directly from the wall or ceiling
• Deep Diffuser Channel — Extra-deep diffuser cavity (15mm) completely conceals LED strips even with high-brightness COB types, eliminating all visible hotspots for a perfectly uniform light line
• Plaster-In Trim Option — Available with a perforated plaster-in flange that allows drywall or plaster to be applied over the edges, making the profile virtually invisible when installed — only the light line shows
• High-Quality Anodized Finish — 6063-T5 aluminum body with silver or black anodized finish provides superior thermal performance and a premium appearance visible during installation
• Tool-Free Diffuser Access — The frosted polycarbonate diffuser clicks in and out without tools, allowing LED strip replacement or maintenance without disturbing the surrounding surface
• Multiple Width Options — Available in 8mm (mini), 12mm (standard), 17mm (wide), and 25mm (extra-wide) to match different LED strip widths and light output requirements

Technical Specifications

Applications

• Architectural Wall Washing — Creates seamless vertical light lines in drywall walls for modern interior designs, gallery lighting, and hospitality spaces
• Ceiling Perimeter Lighting — Recessed into ceiling edges or coves to produce a floating ceiling effect with indirect ambient illumination
• Floor & Step Integration — Installed flush into wooden floors, tile surfaces, or stair treads for subtle wayfinding and safety lighting
• Kitchen & Bathroom Built-Ins — Recessed into tiled walls or under-cabinet surfaces for clean, maintenance-free lighting that doesn’t collect dust or grease
• Retail & Museum Displays — Concealed lighting channels in display walls and exhibition spaces where the light source should be completely invisible

Installation Notes

For drywall installations, cut a channel in the drywall to the profile’s external dimensions using a router or multi-tool. Secure the profile to the substrate with the included mounting clips before the surrounding surface is finished. For plaster-in versions, apply joint compound over the perforated flange edges and sand smooth. Feed the LED strip into the channel before snapping the diffuser into place. Ensure the power supply is accessible for maintenance — do not seal it behind finished surfaces.

Why Choose BrightLink

BrightLink’s recessed profiles are extruded with tighter dimensional tolerances than industry standard, ensuring the plaster-in flange sits perfectly flat against the drywall for invisible integration. Our deep-channel design means even high-brightness LED strips are fully concealed — no visible dots, even at close viewing distances. We stock all width variants in silver and black finishes with same-day shipping. Custom lengths and colors available for project orders. direct-from-manufacturer value with volume discounts for contractors and specifiers. 5-year structural warranty on all aluminum profiles.
