Mean Well ELG-200-24A Compatible 200W 24V IP67 Waterproof LED Power Supply

Overview

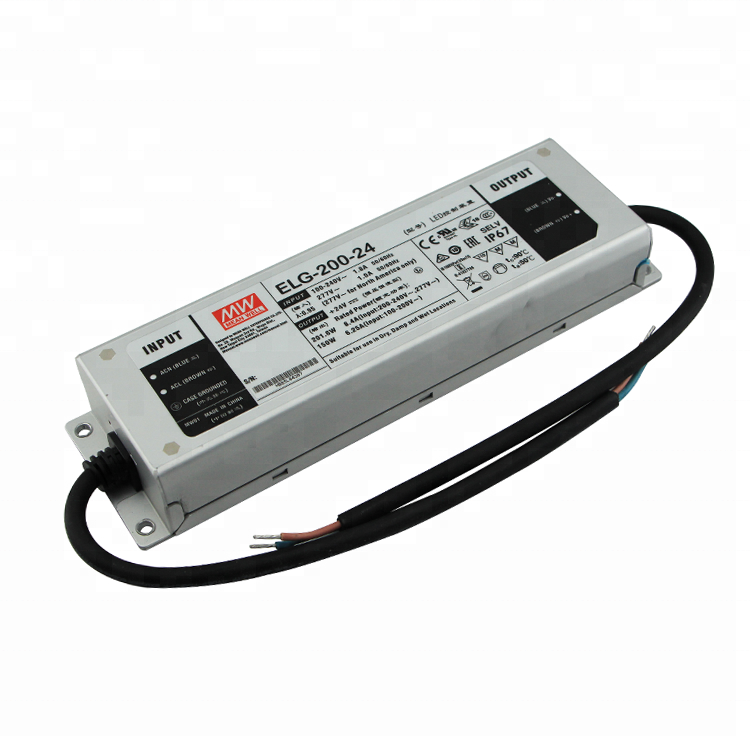

The BrightLink ELG-200-24A compatible LED power supply is a high-performance 200W driver engineered for demanding outdoor and commercial lighting applications. Fully compatible with the Mean Well ELG-200-24A, this unit delivers a stable 24V DC output at up to 8.34A in a fully potted, IP67-rated aluminum enclosure that withstands the harshest environmental conditions.

Featuring universal AC input from 90 to 305VAC, active power factor correction exceeding 0.95, and dual CV/CC output modes, this driver provides maximum flexibility for powering LED strips, modules, flood lights, and complete lighting systems. Its wide operating temperature range of -40C to +85C ensures reliable performance in extreme climates from arctic cold to desert heat.

Key Features

• 200W High Output – 24V DC at up to 8.34A, capable of driving long LED strip runs or high-power LED arrays
• IP67 Waterproof and Dustproof – Fully potted aluminum housing provides complete protection against dust ingress and water immersion up to 1 meter for 30 minutes
• CV + CC Dual Mode – Intelligent output automatically adapts between constant voltage and constant current to protect connected LED loads
• Universal Input Range – 90-305VAC input accepts virtually any global mains voltage without manual switching
• Active PFC Circuit – Power factor greater than 0.95 at full load reduces energy waste and meets international harmonic standards
• Multi-Layer Protection – Short circuit, overcurrent, overvoltage, and overtemperature protection with automatic recovery after fault clearance
• High Efficiency – Up to 90% efficiency at full load minimizes heat generation and energy costs
• 3-Year Warranty – Industrial-grade construction backed by comprehensive manufacturer warranty

Technical Specifications

Applications

The 200W output capacity makes this driver ideal for larger-scale lighting installations. Typical applications include high-bay and warehouse LED lighting systems, commercial LED street and area lighting, large-format LED signage and display walls, architectural flood lighting for buildings and monuments, swimming pool and spa underwater lighting, agricultural and horticultural grow light systems, and industrial machine vision lighting arrays.

Installation Notes

Mount the ELG-200-24A compatible driver using the integrated side brackets and M4 hardware. Ensure at least 50mm clearance on all sides for adequate heat dissipation. The AC input accepts standard 3-conductor wiring (L, N, earth) and should be connected through a dedicated circuit breaker rated for the load. DC output leads are color-coded: blue for V- and brown for V+. For runs exceeding 10 meters, use appropriately gauged wire (minimum 14 AWG recommended) to minimize voltage drop. The IP67 rating allows direct outdoor mounting without additional enclosure, though a protective cover is recommended for installations exposed to direct sunlight for extended periods.

Why Choose BrightLink

BrightLink LED power supplies deliver professional-grade performance that matches or exceeds leading industry brands. Every unit is subjected to rigorous quality control including 100% full-load burn-in testing, hi-pot insulation testing, and output verification. We stand behind our products with a 3-year warranty, responsive technical support, and fast order fulfillment. Trusted by electrical contractors, lighting designers, and facility managers worldwide.
